Brief Introduction

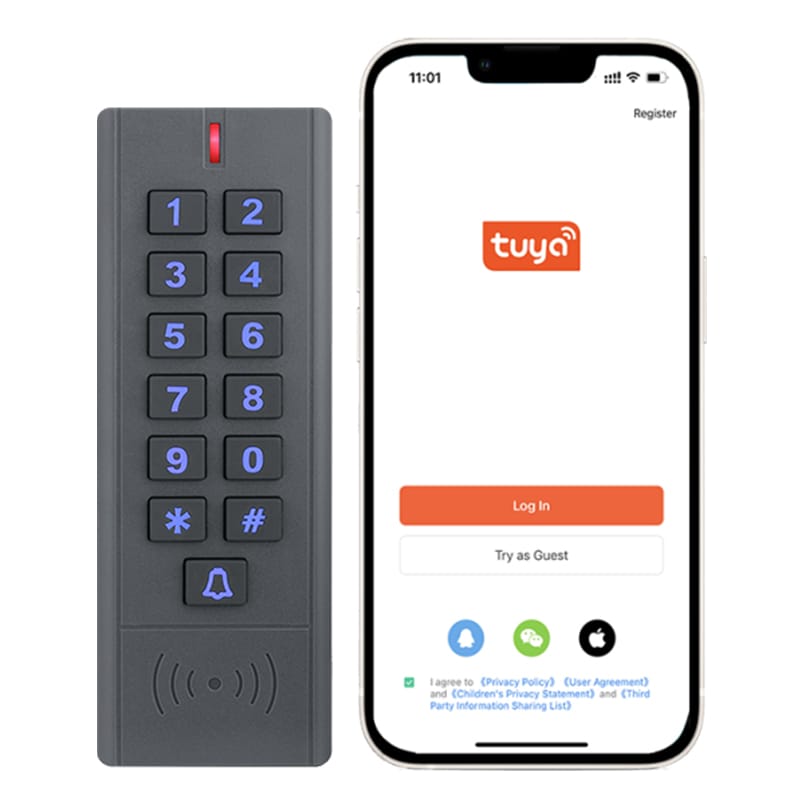

This new generation of smartphone remote control WiFi access control keypad/reader conforms to waterproof IP67.The thickened ABS case is classic and cost-effective.Supports multiple ways of authentication: Card/PIN code/multi-user/guest user and smartphone app settings and OTA online update.
Parameters
| Model | SK9-T |
| Housing | Thickened plastic ABS |
| Waterproof | IP67 |
| Power | DC10-24V |
| Input | EM 125KHz Wiegand 26-44bit丨Mifare 13.56MHz (Mobile NFC) Wiegand 26-44,56,58丨4-6 digits PIN |
| Output | EM Wiegand 26丨Mifare Wiegand 26-44,56,58 Pin code 4 bit丨8 bit丨virtual card number |
| User Capacity | 10000 card/PIN code users |
| Environmental | Temperature:-20℃~﹢60℃ |
| Humidity:10%-99% | |
| Dimension | 134*48*25mm |
| Weight | 0.65kg |
Main Features
Smartphone management丨open remotely丨add/delete users by smartphone丨OTA online update丨high cost effective
door status remote monitoring丨2 anti-duress users丨10 temporary guest users(1-9 opening times)丨Interlock
2-9 multi-users authentication丨Sound & light can be set丨Card and PIN code user data can be copied丨Wiegand reader mode
Model
- SK9-T EM EM 125KHz
- SK9-T MF Mifare 13.56MHz丨NFC213-216丨Mobile NFC
