Brief introduction

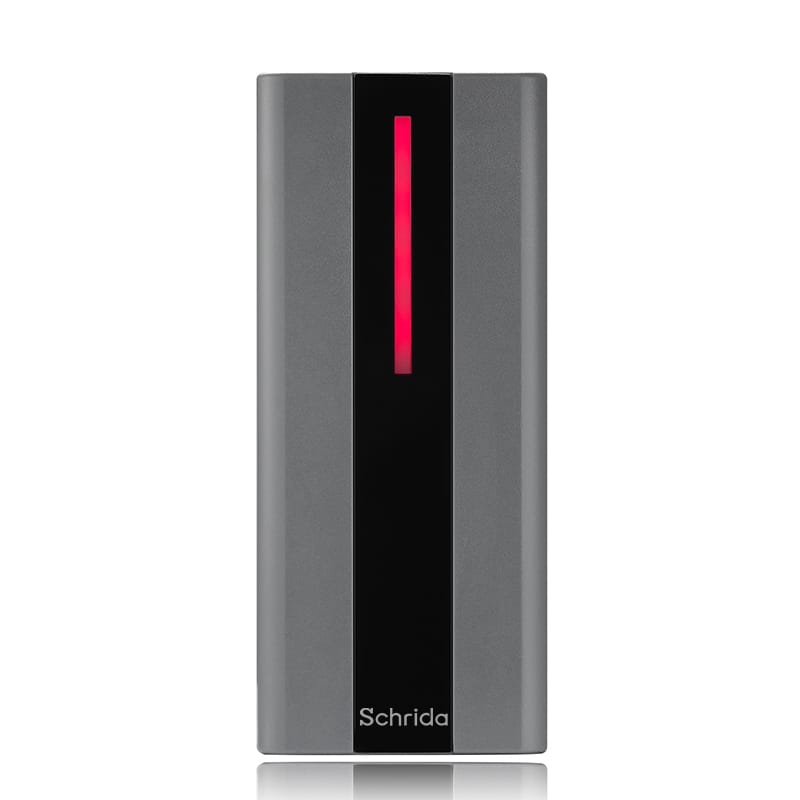

This new generation of small size ABS Rfid card reader conforms to waterproof IP67.The ABS housing is classic and cost effective.It can be integrated into any other systems with the Wiegand protocol output.The users can change the Wiegand formats as required by themselves.
Parameter
| Model | SH1 |
| Housing | Plastic ABS |
| Waterproof | IP67 |
| Power | Wide range DC10-24V |
| Input | EM125KHz 丨HID 125KHz 丨 Mifare 13.56MHz (UID 4bytes,7bytes Plus) |
| Output |
EM 125KHz: 26-44bit HID 125KHz: 26-37bit Mifare 13.56MHz: 26-44bit,56,58bit |
| Mifare type | Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare class |
| Environmental | Temperature: -40℃~﹢70℃ |
| Humidity: 10%-98%RH | |
| Dimension | 100*43*20mm |
| Weight | 0.35kg |
Wiegand formats setting
EM, Mifare, EM & Mifare: the users can change the Wiegand formats with any kind of external keypads which support 4bit / 8bit key output
HID, EM & HID & Mifare: the users can change the Wiegand formats by IR remote SRC1.
Model
- SH1-E EM 125KHz
- SH1-EH EM & HID 125KHz
- SH1-M Mifare 13.56MHz (UID 4 bytes,7 bytes Plus)丨NFC 213-216丨Mobile NFC
- SH1-DM EM 125KHz & Mifare 13.56MHz
- SH1-A EM & HID & Mifare
