Brief Introduction

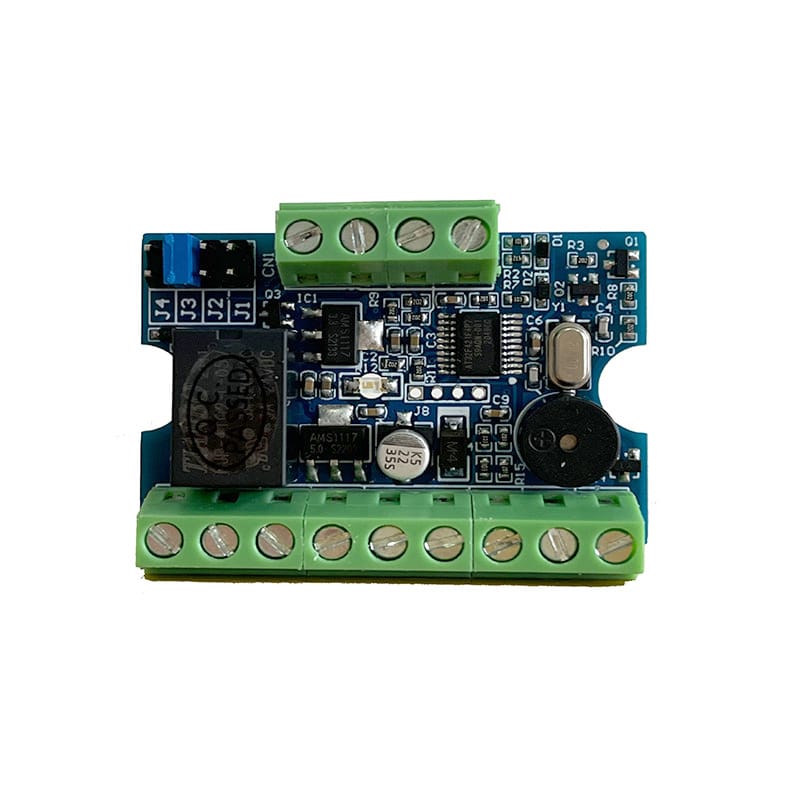

This standalone control board designed for single door access control.Supports external wiegand 26-42 slave reader and Touch memory reader.It has two manager cards and supports connecting to exit button and door contact.This updated version also has the relay which easy to drive the lock.
Parameter
Model | SC-TM |
Power | DC12V±20% |
Standby current | ≤17mA |
Manager cards | 2 |
External reader | Wiegand 26-42 reader & Touch memory reader |
User Capacity | 1000 |
Environmental | Temperature: -35℃~﹢60℃ |
Max Humidity: ≤90%ROH | |
Dimension | 48*32*14mm |
Weight | 0.15kg |
Featured function
Support Wiegand 26-42 reader丨Touch memory reader丨Two manager cards
Built-in relay丨Easy work with any lock and exit button丨Supports door contact
Small size,especially suited for lockers,cabinet,safe box…
