Brief Introduction

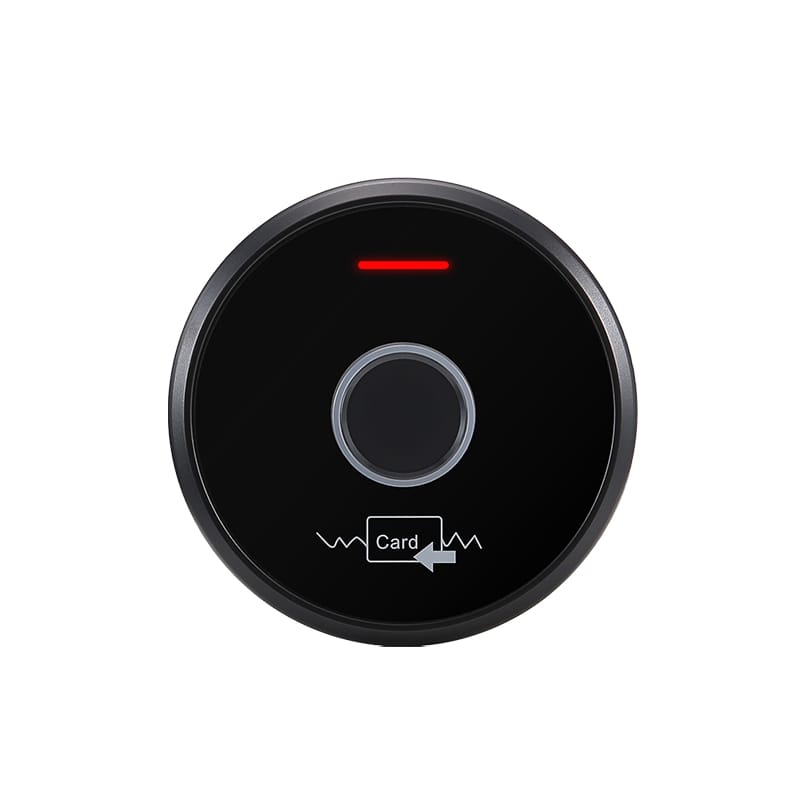

This new generation mini fingerprint access control/reader has attractive appearance of high-end paint metal case which is anti-vandal and anti-explosive. Waterproof IP66 for outdoor installation.Support multiple ways of authentication: fingerprint/card/multi-users/temporary visitor users.Also support card user data copy.
Parameters
Model | SF7 |
Housing | Metal case, the surface of black paint |
Waterproof | IP66 |
Power | DC12V±25% |
Input | EM 125Khz Wiegand 26丨Mifare 13.56Mhz (Mobile NFC) Wiegand 26-44,56,58 |
Output | EM Wiegand 26丨Mifare Wiegand 26-44,56,58 |
User Capacity | 200 fingerprint users丨2800 card users |
Environmental | Temperature:-20℃~﹢60℃ |
Humidity:10%-99% | |
Dimension | φ63mm×16mm |
Weight | 0.3kg |
Featured functions
Semiconductor fingerprint scanner丨Support Admin add/delete fingerprint/card
Data transmission of card user丨Anti-tamper alarm 丨Multiple user
Visitor user 丨Switch mode & Access mode
Model
- SF7-EM 125KHz
- SF7-M Mifare 13.56MHz (Mobile NFC)
